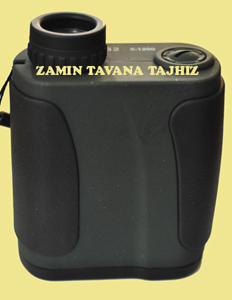

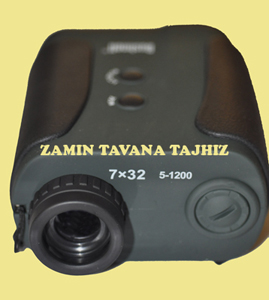

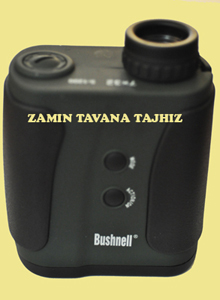

فاصله یاب لیزری Reng Finder

فاصله یاب لیزری Reng Finder

3004

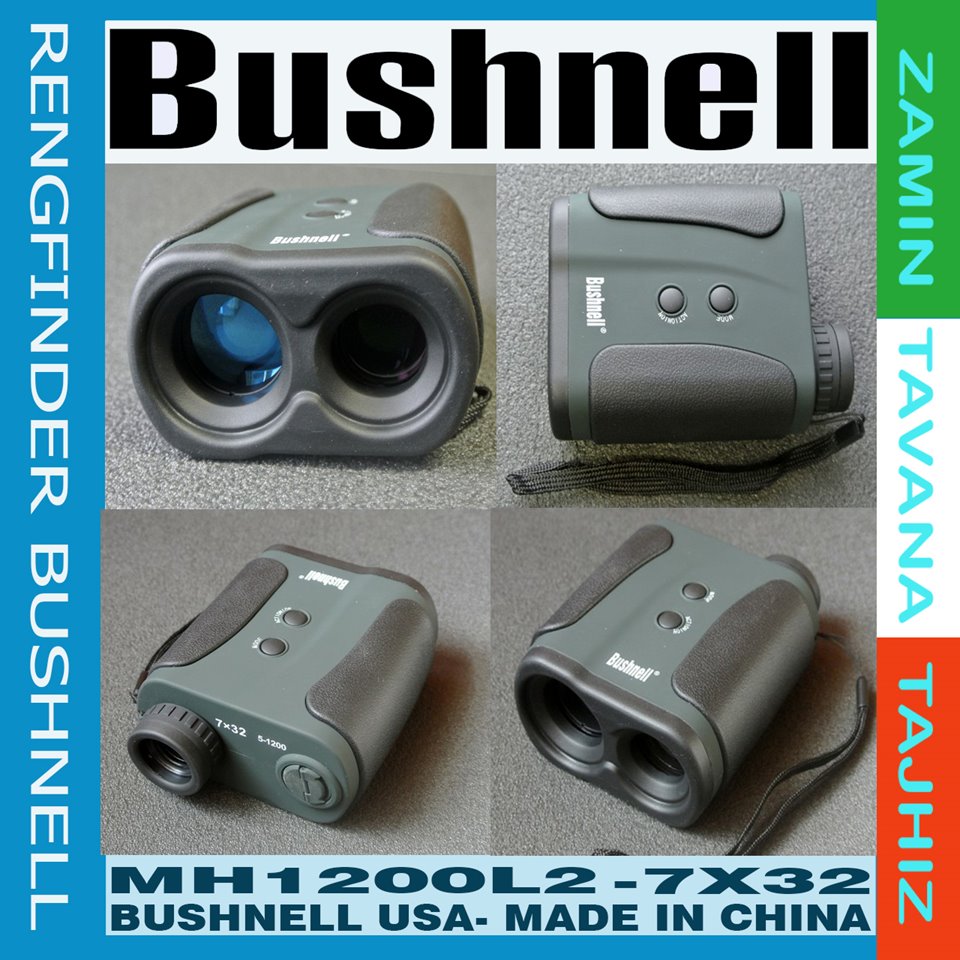

MH1200L2

BUSHNELL ساخت چین

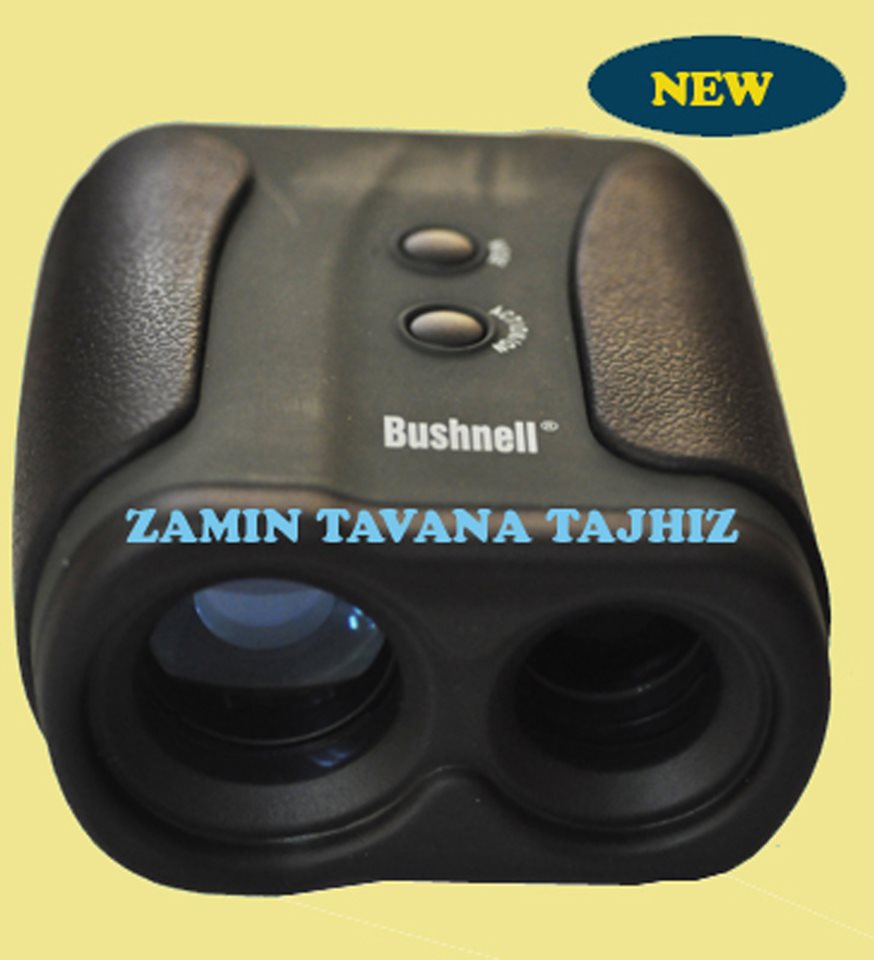

جدید



    Rangefinders 7 x32 MH1200L2/1500L2 Lase
    Range finder  Monocular Measurement
    TECHNICAL CHARACTERISTICS
        Optics Magnification : 7x
        Objective lens : 32mm
        Exit pupil diameter : 4mm
        Field of view :122m / 1000m & 133yad/1000yad
        Type of coating : Fully multi-coated optics
        Type of prism : Bak4 roof prism
        Focus system : Eyepiece focusing
        Range Finder Laser Type : Class 1(eye safe)
        Laser wavelength: 905nm
        Measuring range : 5 ~ 1200m
        Accuracy : Normal condition 1m /yad
        Scan mode : Yes
        Meters/Yards display : Yes
        Target quality indicator : Yes

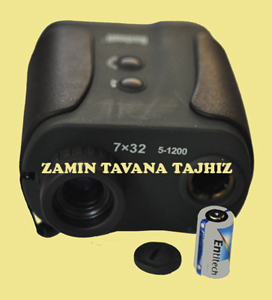

        3.Misc Battery : CR2 battery DC3V
          Low Battery  indicator : yes
        Display : LCD indicator
        Weight : 162g
        Dimensions : 75 × 40 × 110 mm




OPERATION INSTRUCTIONS
1 .Depress the power button ACTION/ON فo turn the power on.
2 .Depress the mode button to change Meters to Yards  . Dynamic data switching function receive the data, hold down the  mode button, switch units and automatically convert data and real-time show.
3 .Press the  ACTION/ON button one time, and begin Ranging 1,the top-right corner of a simulated laser flashes signs in the loop, said it is launching laser. The data show that measurement is in the bottom, also showed that objective reflection of the level of quality instruction, is divided into five, from left to right by five small components, small reflection that the more the stronger. Distance show  ----  4 short horizontal line, that goal can not be measured too far back. Data show that will remain until the next operation or the power of automatically.
4 .Hold down the  ACTION / ON button non-release, immediately began to scan for location, continuously updated measurements show that up until the release button
5 .When the battery is running low, in the upper left corner will display a battery symbol, that the battery should be replaced.
6 .In the main interface, power supply will be no operation automatically after about 30 seconds off.
ATTENTION
1 .Viewing the sun can cause permanent eye damage.
2 .Do not view the sun with this Range finder or even with the naked eye.
