Description

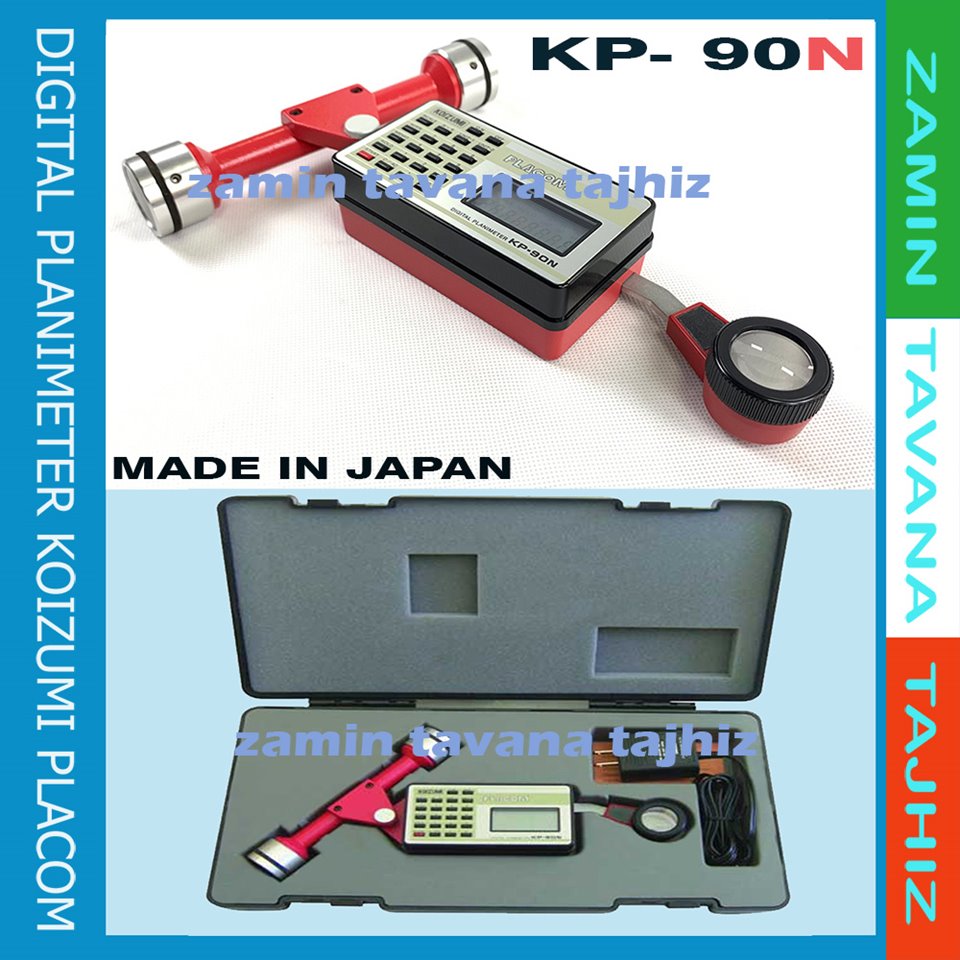

KP-90N Digital Planimeter allows you to take area and line measurements from maps and other sources with accuracy within +-0.2 percent. Koizumi PLACOM KP-90N Digital Planimeter is for a wide range of applications, including construction and civil engineering work, land development planning, agricultural and forestry work, and as teaching devices in schools. The KP-90N scale can operate in either Metric or Imperial units, and the scales are user-programmable. It features a memory hold function for calculations of cumulative totals or mean values. The planimeter runs on a NiCad battery recharged by an AC adapter. (included)
Offered in a roller-type model this planimeter features a unique 6-digit pulse count operation that permits cumulative measurement of areas up to 10m-100 times the measuring capacity of ordinary planimeters. Enhanced with advanced micro-processors for accuracy, this instrument is ideal for many applications where precise large area measurements are needed, such as in civil engineering, surveying, forest management, mapmaking and agriculture. Other features include hold and measuring control, clear liquid crystal digital readout, and scale readings in either Metric or English. Comes packaged in a plastic carrying case with AC adapter (battery included) and operating instructions.
Features
•Features ea
sy roller operation - simply follow the outline of the area to be measured, the reading on the digital display corresponds to the circumscribed area. Please note: KP90N has a computing function that gives the measurement readout in the scale desired (sq.ft., acres, etc.).
•Applications:
•Construction and civil engineering
•Land developing planning
•Machine designing
•Data analysis in statistics
•Architecture and interior designing
•Forestry area
•Ship designing
•Medical research
•Agriculture
•Specifications:
•Max. measuring range: 325mm vertical; 30m horizontal
•Accuracy: within +-0.2% (within 2/1000 pulses)
Technical Specs
•Type: Roller Type With Computing Function
•Display: Liquid Crystal, 8 digit figures, 10 symbols
•Symbol: Batt-E, SCALE, MEMO, HOLD, cm, m, km, in, ft, acre
•Converting Function: Unit and Scale value
•Accumulated Measuring Value: Maximum 10m (scale 1:1)
•Measuring Range: Maximum vertical width: 325mm
•Horizontal roller rotating length: 30m
•Accuracy: Within +-0.2% (within 2/1,000 pulses)
•Power Supply: Built-in Ni-Cad storage battery (rechargeable AC adapter) AC 120V (using the supplied AC adapter) (provided with auto power-off function)
•Operating Duration: Approximately 30 hours continuous operation
•Battery Charging Time: Approximately 15 hours
•Main Unit Weight: 750g
•Accessories: Supplied AC adaptor and carrying case
-
Placom مساحت سنج KP-90N-سری دیجیتال باپیشرفته ترین توابع میباشد
با بررسیهای کامل مدل استاندارد "Koizuimi Placom" N ازسری kp ساخته شده است / بالاترین محصول در تاریخ Placom دیجیتال ساخت مساحت سنج KP-90N می باشد که تا به حال ساخته شده است. اندازه گیری با ظرفیت قابل توجه و شمارش پالس 6 رقمی شما را قادر می سازد برای اندازه گیری 100 برابر بزرگتر از پلانیمتر عادی عمل کنید .
موارد کاربرد:
ساخت و ساز و مهندسی عمران/ طراحی دستگاه طراحی
طراحی و آنالیز در آمار/ معماری و طراحی داخلی/ جنگلداری
طراحی کشتی/ پژوهش های پزشکی/ کشاورزی
-
مشخصات فنی:
-
دارای 10 سیمبول – 8 کاراکتر
-
اندازه گیری مساحت با واحدهای مختلف
-
انباشت عملیات تا حدکثر 10
-
تبدیل واحدها
-
طول حرکت m30
-
دقت 2/0 %
-
همراه با كيف حمل و آدابتور برق
