Model: BRUNTON DICOTA

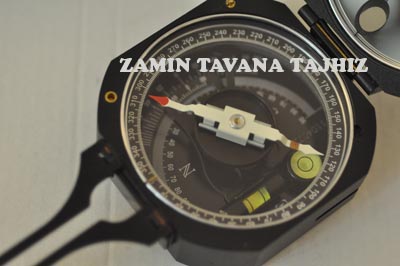

Needle
Induction dampened
damping time ≤ 15 SEC
Red needle to N, white needle to S
Vernier
with vernier
allowing for fine inclination measurement
Vertical Accuracy(Direct reading): ± 10°
Estimated reading: ± ½ °
VerticalRange: ± 90° or 0-100%
Circle
Graduation: 0-360° , Min. 1° , allowing for ½ ° (estimated) azimuthreading
Diameter: Outer: 65-0.05mm; Inner: 55+0.2mm
Zero PIN
Allowingfor magnetic deviationadjustment
Level(Bubble)
Circular Level: Allowing for azimuth measurement levelling/ Accuracy: 30 min ± 5 min /2mm
Plate Level: Allowing for inclination measurement levelling/ Accuracy: 20 min ± 5 min /2mm
Peep Sight
Large Sight: Coming withlarge peep sightattached to the housing
Small Sight: Coming with small peep sight attached to the cover

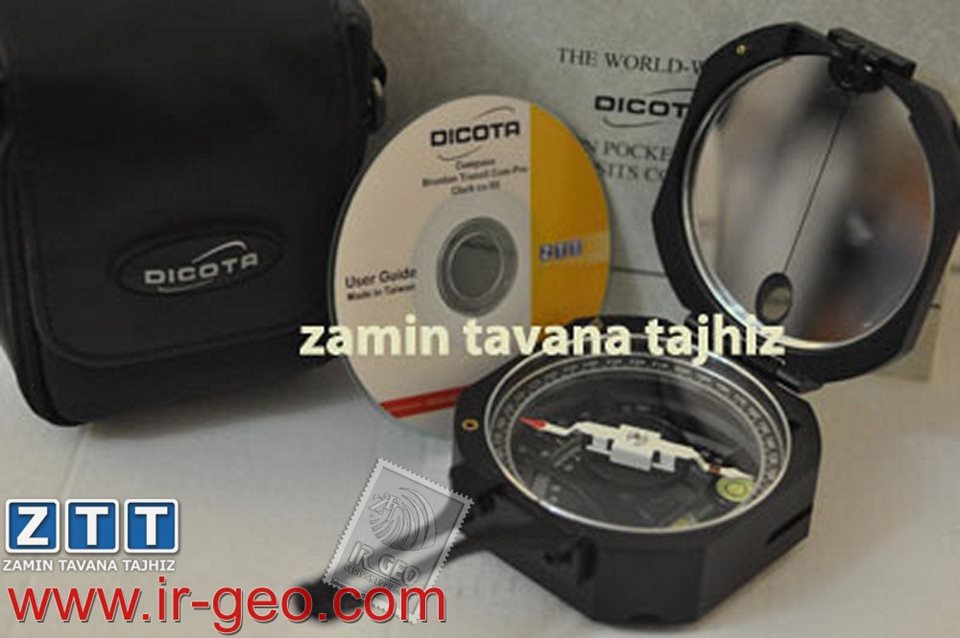

Standard Outfit
Instrument, Leather Caseand mini Tools
-
مدل برانتون
-
داراي سيستم دمپينگ
-
جلد چرمي مخصوص
-
بند حمايل
