ارتفاع سنج و شیب سنج دجیتالی

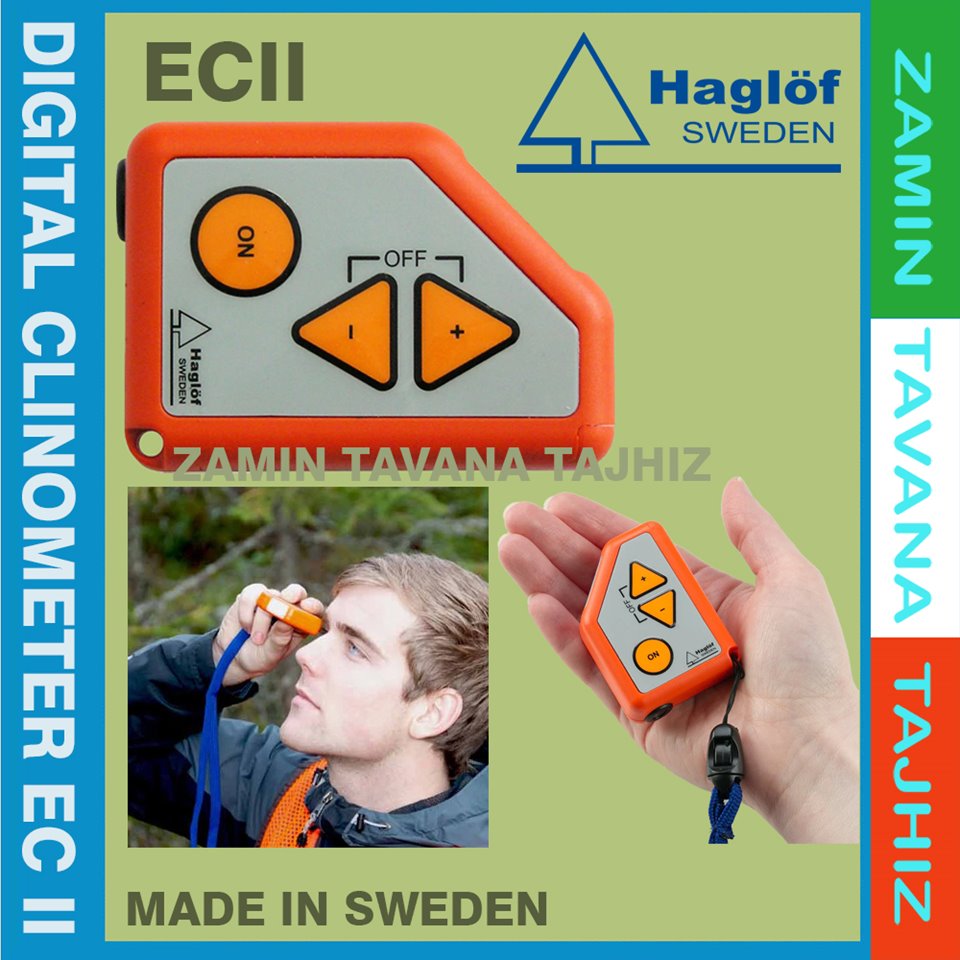

The EC II  is a small-size, multi-function instrument that can be used for quick results of stand volume estimates. The EC II  has adjustable factors and offers great accuracy for your height measurements.The new EC II version also includes trigonometrical distance calculation to the measuring object. To use, set a visible mark at a reference height of 2 metres/6 feet on the object to measure. Walk a distance approximately as far away as the object's total height. Measure the angle to the object's base, followed by the angle to the reference height mark. The distance is calculated by the instrument and the result flashes quickly in the display. The EC II  is now ready to measure the total height or other height on the object. For basal area and volume calculation, use the factor gauge to count number of stems and input in the EC II  instrument. The basal area and a volume estimate of the stand is presented to you in the instrument display.
Technical data
    Dimensions: 20 x 63 x 44 mm
    Weight: 50 g / 70 g (incl. battery)
    Battery: 1 x 1.5 AA / 15mW
    Angle -55˚  < 85
    Display: LCD with backlight
    Acoustic signal: Yes
    Temperature range: min -15 °C to max +45 °C
    Factor gauge: transparent plastic, thumb grip, beveled, 60 cm metal chain
    Relascope factors: 0.5, 1, 2, 4 (m2/ha)
    Factor: 0.10...0.95
    Volume: height x shape quotient x base area
    Unit of measurement: m3/ha.
