چکش اشمیت تیپ N

SCHMIDET  TEST   HAMMER
Model: HT-225

Explanation
Consistent withGB/T9138-1988 standards and JJG817-93 statutes and JGJ/T23-2001 technical regulations. HT-225 Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.
Features
 Center guide rod using imported materials, high precision, wear-resistant;-
Use of super-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life-
-Pointer slider with external spring ring structure, both convenient for the friction adjustment,and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument.Peer-products is relatively high accuracy, quality and cheap, long service life

TECHNICAL SPECIFICATIONS
Measuring ranges  10-60MPa
•Nominal kinetic impact energy: 2.207J (0.225 kgf.m)
•Flip tension spring rigidity: 7.84N (0.80 kgf) / cm
•Punch advance for impact hammer: 75 mm
•Maximum breakout friction of pointer system:0.65N +/-0.15N)
•Mean-value of steel-anvil rating of concrete test hammer: 80+/-2
•Radius of spherical tip  25mm +/-1mm
•Dimension:54 mm x 280 mm
•Net weight (Hammer Only): 1 kg

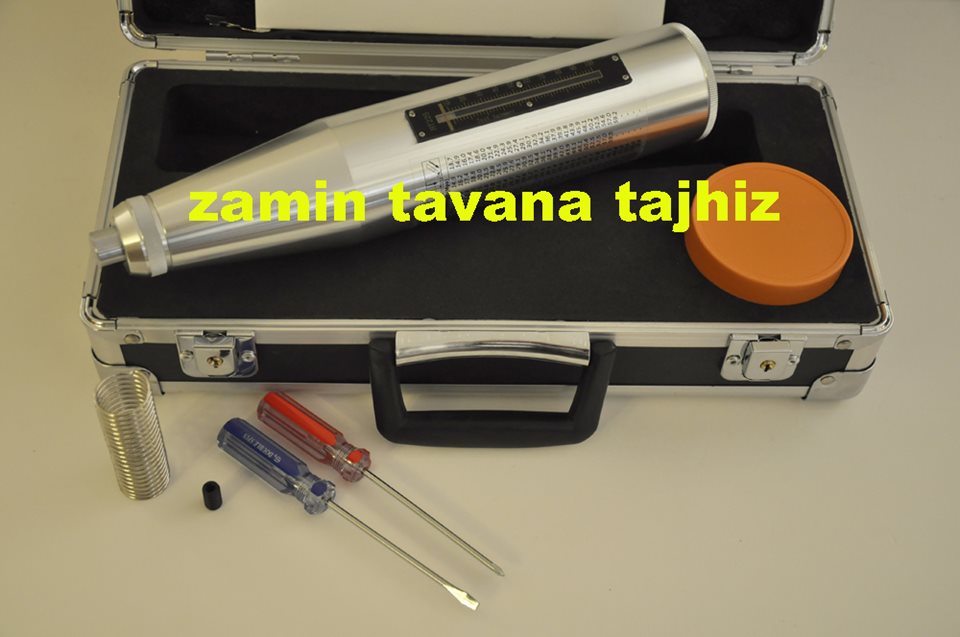

SUPPLIED WITH:

•Main unit HT225
•User manual
•Test Calibraton certificate
•Grinding wheel block
•Alluminium carrying case
